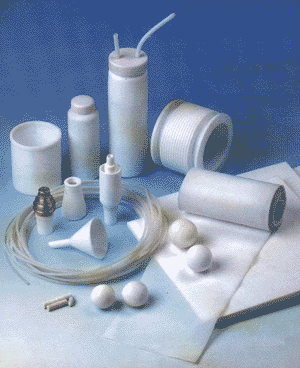

Introduction
GARG Laboratory Ware And Accessories Are
Designed For Use Under The Most Severe Laboratory Conditions. Superior
Performance Results From The Out Standing Properties Of PTFE, FEP And PFA
Fluoropolymer Resins And The Techniques Used In Their Fabrication GARG Has
Perfected The Means Of Fashioning Laboratory Ware From Fluoropolymer
Resins Which Have An Unmatched Combination Of Chemical Inertness, Heat
Resistance, Low Temperature Toughness And Non Adhesive Qualities. The
Resulting GARG Products Are Exceptionally Safe And Reliable For The Most
Critical Laboratory Experiments.
HEAT & COLD RESISTANTY PTFE
AND PFA Can With Stand Continues Heat As High As 500 F (260°
C) While FEP Can With Stand Continues
Heat Of 480 F (205°C)
PTFE< FEP And PFA Can With Stand Intermittent Heat To 600 F (315°C)
550 F (288°C)
And 500 F (260°C)
Respectively. Experience Has Shown That Exposure To These High Temperature
Does Not Affect The Utility Of GARG Laboratory Ware Products.
Fluoropolymers
Also Have Out Standing Low Temperature Toughness And Flexibility. It
Restains Its Useful Properties Down Through The Cryogenic Range.
In
Addition To The Properties Inherent In Fluoropolymer
Resins, GARG Laboratory Ware Brings You These Special Advantages:-
Extra
Smooth Surface
Resulting
From The Finest Moulding Equipment & Techniques
Assure
Easy Through Cleaning
Easy
To Handle
Products
Are Light In Weight
Familiar
In Shape
Styled
For Easy Handling.
|
|
PROPERTIES OF GARG
PTFE PRODUCTS
 |
Non -
Stick
Very few solid substances will permanently adhere to a "Garg PTFE"
coating. And while tacky materials may show some adhesion, allmost all
substances release easily. |
 |
Non - Wetting
Since "Garg PTFE" surfaces are both oleo phobic and hydrophobic,
they are not readily wet. Clean-up is easier, more through and in many
cases self-cleaning. |
 |
Heat Resistance
There is no decomposition of "Garg PTFE" finishes below 400o F;
insignificant decomposition between 400 and 500 F which requires no
special precautions. From 500 to 575 F, intermittent service is possible
with adequate ventilation. |
 |
Low Coefficient
of Friction
The coefficient of friction of "Garg PTFE" is generally in the
range of 0.05 to 0.20, depending upon the load, sliding speed and
particular "Garg PTFE" finish used. |
 |
Cryogenic
Stability
Many "Garg PTFE" will withstand severe temperatures extremes
without loss of physical properties. "Garg PTFE" may be
considered for use at temperatures as low as -450o F. |
 |
Unique
Electrical Properties
Over a wide range of frequencies, "Garg PTFE" has high
dielectric strength, a low dissipation factor, and very high surface
resistivity. By special techniques, it can be made conductive enough to be
used as an anti-static coating. |
 |
Chemical
Resistance
"Garg PTFE" is normally unaffected by chemical environments.
However, certain coatings are permeable or have a lower resistance to
attack. The only chemicals known to affect all "Garg PTFE"
finishes are the alkali metals and highly reactive fluorinating
agents. |
 |
Item
Code : - GSGI/PTFE/001
PTFE
BEAKERS |
| MADE OF PTFE. Griffin low,
Form .... broad spout for easy Pouring .... all popular sizes ..... Smooth
surfaces non - contaminating unbreakable. Easy to clean. We can also
manufacture tall for Philips type and without spout. |
| Capacity (in ml) : - 25, 50,
100, 150, 200, 250, 300, 400, 500, 1000, 2000, 3000, 5000, 10000 ml. |
|
|
Item
Code : - GSGI/PTFE/002
PTFE LID |
| For above Beakers plain type
1.5 mm to 2mm thick.. |
| Capacity (in ml) : - 25, 50,
100, 150, 200, 250, 300, 400, 500, 1000, 2000, 3000, 5000, 10000 ml. |
|
|
Item
Code : - GSGI/PTFE/003
PTFE VESSEL
or JARS with SCREW CAP |
| MADE OF PTFE. Handle severe
corrosive liquids, concentrated acids, Solvents and sensitive reagents.
Rigid walls, seamless, knurled cap, stackable inner, secondary seals,
rediused inside corners. |
| Capacity (in ml) : - 50, 100,
250, 500, 1000, 2000, 5000 ml. |
|
|
Item
Code : - GSGI/PTFE/004
PTFE BOTTLE
Narrow Mouth with Screw Cap |
| MADE OF PTFE. For storing the
most corrosive chemicals or solvents... Inert... heat and cold resistant
.... easily. Cleaned and we can also supply in bigger capacity. |
| Capacity (in ml) : - 25, 50,
100, 250, 500, 1000, 2000 ml. |
|
|
Item
Code : - GSGI/PTFE/005
PTFE
BOTTLE Wide Mouth with Screw Cap |
| MADE OF PTFE. For storing the
most corrosive chemicals or solvents... Inert... heat and cold resistant
.... easily. Cleaned and we can also supply in bigger capacity. |
| Capacity (in ml) : - 25, 50,
100, 250, 500, 1000, 2000 ml. |
|
|
Item
Code : - GSGI/PTFE/006
PTFE
CRUCIBLE |
| PTFE Rigid Crucible
can be used for sample testing. |
| Capacity (in ml) : - 15, 25,
50, 80, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/007
PTFE LID |
| PTFE Lid for above crucible. |
| Capacity (in ml) : - 15, 25,
50, 80, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/008
PTFE
MAGNETIC STIRRER BAR |
| MADE OF PTFE. Magnetic Stirrer
Bars : PTFE Coated stirring leakproof polished seamless bars / rotors /
paddles with center ring for use with magnetic stirrers contain a
permanent alnico V magnet with center ring. |
| Dia x Len
: - 6x12, 7x15, 9x20, 9x 25, 9x30,
9x35, 9x40, 9x50, 9x75, 13x35, 13x50, 13x75, 13x100. Please Note : Twin
mount block type oval shape, Plain without center rings, octagon, Umbel shape can also be supplied. |
|
|
Item
Code : - GSGI/PTFE/009
PTFE
POLICEMAN (or MAGNETIC-RETRIVER) |
| MADE OF PTFE. Magnetic
stirring bar Retirivers / policeman / cylindrical permanent magnet sealed
at the end for removal or insertion of bars. |
| Size
: - 12x300 ml, 12x400ml. |
|
|
Item
Code : - GSGI/PTFE/010
PTFE
STIRRER GUIDES |
| MADE OF PTFE. Stuffing box
gland cone with cap having shaft dia from 6 to 19 mm . |
| Size
: - B19, B24, B29, B34, B40, B45, B50, B55. |
|
|
Item
Code : - GSGI/PTFE/011
PTFE
STIRRER GUIDES |
| .... without bearing rotating
on bushes MADE OF PTFE. Stuffing box gland with PTFE pully without bearing
rotation on bushes all PTFE.. |
| Size
: - B19, B24, B29, B34, B40, B45, B50, B55. |
|
|
Item
Code : - GSGI/PTFE/012
PTFE
STIRRER GUIDES |
| .... (Stuffing box with Brass
Pulley or SS Pulley ) MADE OF PTFE. Stuffing box gland with brass pulley
rotation is achieved by coupling to a geared motor or via drive pulley
(specify shaft dia) . |
| Size
: - B24, B29, B34, B40, B45, B50, B55. |
|
|
Item
Code : - GSGI/PTFE/013
PTFE
STUFFING BOX WITH STIRRER GUIDE |
| MADE OF PTFE. (specify shaft
dia) . |
| Size
: - B19, B24, B29, B34, B40, B45, B50, B55. |
|
|
Item
Code : - GSGI/PTFE/014
PTFE MERCURY
SEAL |
| MADE OF PTFE. Sealing with
Mercury or Liquid Paraffin (specify shaft dia) . |
| Size
: - B19, B24, B29, B34, B40, B45, B50, B55. |
|
|
Item
Code : - GSGI/PTFE/015
PTFE
STIRRER PLAIN with S.S. ROD |
| MADE OF PTFE. PTFE ROD
contains a fully encapsulated steel insert for increased stiffness. It can
be shaped to different configurations for use as a powered Stirrer
unbreakable ... non contaminating ... non scratching. |
| Dia x Len :
- 8x200, 10x250, 12x300. |
|
|
Item
Code : - GSGI/PTFE/016
PTFE
STIRRER ROD PLAIN |
| MADE OF PTFE. |
| Dia x Len :
- 8x200, 10x250, 12x300. |
|
|
Item
Code : - GSGI/PTFE/017
PTFE
THERMOMETER POCKET |
| MADE OF PTFE. Small, Big or
any length required. |
| Size : - B14, B19, B24. |
|
|
Item
Code : - GSGI/PTFE/018
PTFE WATCH
GLASS |
| MADE OF PTFE. This can also be
used as a Beakers lid. |
| Dia x Thick :
- 50x1.5, 60x1.5, 75x1.5, 85x1.5, 100x2, 125x2, 150x2. |
|
|
Item
Code : - GSGI/PTFE/019
PTFE HEXAGONAL
STOPPERS |
| MADE OF PTFE. Out last and out
perform conventional ground glass stoppers unaffected by corrosive
chemicals needs no Lubrication, unbreakable replaces joint Glass stoppers,
and glass flask stoppers. |
| Size
: - B10, B14, B19, B24, B29, B34, B40, B45, B50, B55. |
|
|
Item
Code : - GSGI/PTFE/020
PTFE HOMOGENIZERS
(Tissue Grinder) |
| ..... With S.S. or glass body
with PTFE body. MADE OF PTFE. Tissue
Grinders - PTFE vessels homogenizers consists of piston type PTFE
vessel with stainless steel shaft and replaceable grinding vessel of
Borosilicate glass. The pastie is either. |
| Size (in ml) : - 5, 10,
20, 30, 50, 100 ml. |
|
|
Item
Code : -GSGI/PTFE/021
PTFE
PLAIN TEST TUBE WITH ROUND AND FLAT BOTTOM |
| PTFE Plain test tube with Round and flat bottom. MADE OF PTFE. |
| Capacity (in ml) : - 5, 10,
15, 20, 25, 50, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/022
PTFE
TEST TUBE WITH SCREW CAP ROUND |
| PTFE test tube with screw cap
round and flat bottom with
insert constructed Neck. MADE OF PTFE. |
| Capacity (in ml) : - 5, 10,
15, 20, 25, 50, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/023
PTFE
TEST TUBE |
| PTFE test tube with
interchange stopper round
and flat bottom. MADE OF PTFE. |
| Capacity (in ml) : - 5, 10,
15, 20, 25, 50, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/024
PTFE
PLAIN CENTRIFUGE TUBE |
| PTFE plain centrifuge tube Round and conical shape. MADE OF PTFE. |
| Capacity (in ml) : - 5, 10,
15, 20, 25, 50, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/025
PTFE
CENTRIFUGE TUBE |
| PTFE Centrifuge Tube round and conical shape with
screw cap a constructed neck extra insert. MADE OF PTFE. |
| Capacity (in ml) : - 5, 10,
15, 20, 25, 50 ml. |
|
|
Item
Code : - GSGI/PTFE/026
PTFE
CENTRIFUGE TUBE |
| PTFE CENTRIFUGE TUBE WITH INTERCHANGEABLE STOPPER. MADE OF PTFE. |
| Capacity (in ml) : - 5, 10,
15, 20, 25, 50, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/027
PTFE
TEST TUBE OR CENTRIFUGE RACK |
| PTFE test tube or
centrifuge rack is suitable for
deep freezing in liquid Nitrogen for higher temperature in ovens. |
| Diameter of
tube |
No. of tube |
Len x Width x
Ht. |
| 16 mm |
21 |
180x180x60 |
| 20 mm |
10 |
180x60x70 |
| 30 mm |
6 |
180x60x80 |
| 40 mm |
4 |
180x60x80 |
|
|
Item
Code : - GSGI/PTFE/028
PTFE
VIALS |
| CONICAL AND FLAT BOTTOM
with tight fit cap or
screw cap. MADE OF PTFE. Suitable for handling all sample requirements
stockable ability to handle all corrosive media. |
| Capacity (in ml) : - 5, 10,
15, 20, 25, 50, 100 ml. |
|
|
Item
Code : - GSGI/PTFE/029
PTFE
VIAL RACK |
| MADE OF PTFE. (ask for
cap/sizes) |
| Len x Width x Thickness
: - 150 x 80 x 40. |
|
|
Item
Code : - GSGI/PTFE/030
PTFE
EVAPORATING DISHES |
| MADE OF PTFE. Broad pouring
spout flat bottom unbreakable chemical inert heat and cold resistant non
contaminating, easy to clean. Will not absorb chemical or odours. Will not
crack or deteriorate with age. |
| OD x HT : - 80x45, 105x55,
150x80, 200x100. |
|
|
Item
Code : - GSGI/PTFE/031
PTFE
DISHES CRYSTALLIZING |
| MADE OF PTFE. Broad pouring
spout flat bottom unbreakable. Chemical inert heat and cold resistant non
contaminating. Easy to clean.Will not absorb chemical or odours. Will not
crack or deteriorate with age. |
| OD x HT : - 100x50, 150x75,
190x100. |
|
|
Item
Code : - GSGI/PTFE/032
PTFE
DISHES ASSAY or CULTURE PETRI |
| MADE OF PTFE. Accuracy of many
biological assays depends on the flatness of the inside bottom of petri
dishes used. This dished has an inner bottom held to close flatness
tolerances clear dishes with stand repeated sterilization (wet or dry
) |
| OD x HT : - 50x17, 80x17,
100x17, 150x17, 200x17 |
|
|
Item
Code : - GSGI/PTFE/033
PTFE TRAY
DRYING (HEAVY WALL) |
| These trays will withstand hot
air or steam sterilization use full paper chromatography too. |
| Len x Width x Thickness
: - 250 x 150 x 50, 200 x100 x50, 150x150x40 |
|
|
Item
Code : - GSGI/PTFE/034
PTFE GAS
WASH BOTTLE with screw cap |
| MADE OF PTFE. For rinsing with
or dispensing virtually all Chemicals insert unbreakable and easy to
clean. |
| Capacity (in ml) : - 100, 250,
500, 1000 ml. |
|
|
Item
Code : - GSGI/PTFE/035
PTFE DROPPING
BOTTLES |
| MADE OF PTFE. |
| Capacity (in ml) : - 25, 50
ml. |
|
|
Item
Code : - GSGI/PTFE/036
PTFE CONICAL
FLASK NARROW MOUTH |
| MADE OF PTFE. For use with and
dispensing of virtually all chemicals un breakable inert properties of
PTFE facilitate easy of pouring due to non-stick, non absorption
properties. |
| Capacity (in ml) : - 25, 50,
100, 150, 200, 250, 500 ml. |
|
|
Item
Code : - GSGI/PTFE/037
PTFE CONICAL
FLASK WIDE MOUTH |
| MADE OF PTFE. For use with and
dispensing of virtually all chemicals un breakable inert properties of
PTFE facilitate easy of pouring due to non-stick, non absorption
properties. |
| Capacity (in ml) : - 25, 50,
100, 150, 200, 250, 500 ml. |
|
|
Item
Code : - GSGI/PTFE/038
PTFE CONICAL
FLASK WITH SCREW CAP |
| MADE OF PTFE. |
| Capacity (in ml) : - 25, 50,
100, 150, 200, 250, 500 ml. |
|
|
Item
Code : - GSGI/PTFE/039
PTFE DIGESTION
VESSEL |
| MADE OF PTFE. For
rapid preparation of small samples in an acid resistant contamination free
vessel. |
| Capacity (in ml) : - 5, 10, 20
ml. |
|
|
Item
Code : - GSGI/PTFE/040
PTFE TRANSFER
CONTAINER |
| MADE OF PTFE. For fluid
transfer at low pressure upto 5psi containers have two 1/4" fitting
with tubing . |
| Capacity (in ml) : -
250, 500 ml. |
|
|
Item
Code : - GSGI/PTFE/041
PTFE
TUBE OR SLEEVE THIN WALLS |
| PTFE
TUBE OR SLEEVE THIN WALLS (IN LENGTH OF 3 TO 8
METERS ) MADE OF PTFE. |
| ODxIDxWT (mm) :- 3.2x1.6x0.8,
4.8x3.2x0.8, 6.4x4.8x0.8, 8.0x6.4x0.8, 9.5x7.9x0.8, 11.1x9.5x0.8,
12.7x11.1x0.8, 14.3x12.7x0.8 |
|
|
Item
Code : - GSGI/PTFE/042
PTFE
TUBE OR SLEEVE HEAVY WALLS |
| PTFE
TUBE OR SLEEVE HEAVY WALLS (IN LENGTH OF 3 TO 8
METERS ) MADE OF PTFE. *marked 2 item in length upto 3 mtr |
| ODxIDxWT (mm) :- 6.35x3.2x1.5,
8.0x4.8x1.5, 9.5x6.35x1.5, 11.1x8.0x1.5, 12.5x9.5x1.5, 16.0x12.5x1.5,
19.0x16.0x1.5, 22.2x19.0x1.5, 25.0x22.0x1.5, 28.0x25.05x1.5
TOLERANCE : First 5 items :- +/- 0.3 mm
on OD, ID and wall.
THICKNESS : Last 5 items :- +/- 0.5 mm on OD, ID +/- 0.3 mm on
Wall Thickness.
|
|
|
Item
Code : - GSGI/PTFE/043
PTFE
REDUCTION ADAPTOR |
| MADE OF PTFE. Made for joining
standard joints different sizes use in place of glass adapters eliminate,
freezing and breaking no grease required, easy to insert and remove. |
| FEMALE SOCKET X MALE CONE : -
B14xB19, B19xB24, B24xB34, B34xB55 |
|
|
Item
Code : - GSGI/PTFE/044
PTFE
EXPANSION ADAPTOR |
| MADE OF PTFE. |
| FEMALE SOCKET X MALE CONE : -
B14xB19, B19xB24, B24xB34, B34xB55 |
|
|
Item
Code : - GSGI/PTFE/045
PTFE GAS
INLET OR OUTLET TUBE |
| PTFE GAS
INLET OR OUTLET TUBE (CONE WITH BENT) MADE OF PTFE. |
| SIZE : - B14, B19, B24, B34,
B55 |
|
|
Item
Code : - GSGI/PTFE/046
PTFE
SOLID SPHERICAL BALLS |
| MADE OF PTFE. Completely inert
to liquids and Vabours for column paching mixing beads or to prevent
bumping in boiling can use in non return valve and vaccum pump. |
| DIA (in mm) :-
6,8,10,12,15,19,20,25,32,35,38,40,45,50 mm |
|
|
Item
Code : - GSGI/PTFE/047
PTFE
RAISING RINGS |
| MADE OF PTFE. Packing to
distillation columns scrubbers completely inert-high surface area per unit
of volume minimum resistance to gas and liquid flow (supplying in any
sizes ) . |
| DIA X HT : -
6x6,8x8,10x10,12x12,15x15,20x20,25x25 |
|
|
Item
Code : - GSGI/PTFE/048
PTFE
SCRAPER |
| MADE OF PTFE. For delicate
transfer jobs or for scraping precipitates and residues each scrap has a
chisel tip on one end and diagonal cut at the other end. |
| DIA X HT : - 10x200, 12x250,
12x300 |
|
|
Item
Code : - GSGI/PTFE/049
PTFE
RELATIVE DENSITY |
| PTFE
RELATIVE DENSITY OR.... SPECIFIC GRAVITY BOTTLE
WITH INTER CHANGABLE STOPER. MADE OF PTFE. |
| CAPACITY (in ml) : - 10, 25,
50 ml. |
|
|
Item
Code : - GSGI/PTFE/050
PTFE
WEIGHING BOTTLES |
| PTFE
WEIGHING BOTTLES WITH INTERCHANGEABLE
STOPPER TALL FORM AND LOW FORM. MADE OF PTFE. |
| CAPACITY |
5 ml |
15 ml |
20 ml |
25 ml |
40 ml |
60 ml |
|
| DIA X HT |
20 x 40 |
25 x 50 |
50 x 25 |
30 x 60 |
60 x 30 |
40 x 80 |
|
|
Item
Code : - GSGI/PTFE/051
PTFE CAP
LINER |
|
PTFE CAP
LINER FOR ANY SCREW
TYPE FITTING. MADE OF PTFE. |
| DIA X THK (mm) |
12 x 0.5 |
15 x 0.5 |
20 x .5 |
25 x 0.5 |
30 x 0.5 |
| DIA X THK (mm) |
12 x 1 |
15 x 1 |
20 x 1 |
25 x 1 |
30 x 1 |
|
|
Item
Code : - GSGI/PTFE/052
PTFE
STOP COCK |
| PTFE
STOP COCK WITH GLASS BODY AND PTFE
PLUG. MADE OF PTFE. |
| SIZE Bore of plug (in mm) : -
2, 4, 6, 8, 10 mm. |
|
|
Item
Code : - GSGI/PTFE/053
PTFE
SLEEVE |
| MADE OF PTFE. Flexible sleeves
for cone to socket gripping coller for ready removal, no grease required. |
| SIZE : - B14, B19, B24, B29,
B34, B40, B55. |
|
|
Item
Code : - GSGI/PTFE/054
PTFE
VOLUMETRIC FLASK |
| PTFE
VOLUMETRIC FLASK "WITH ONE THREAD
JOINT). MADE OF PTFE. |
| CAPACITY (in ml) : - 25, 50,
100, 150, 200, 250, 500, 1000 ml. |
|
|
Item
Code : - GSGI/PTFE/055
PTFE
IODINE DETERMINATION FLASK |
| MADE OF PTFE. |
| CAPACITY : - 250, 500 ml. |
|
|
Item
Code : - GSGI/PTFE/056
PTFE
BELLOW ADAPTER |
| PTFE
BELLOW ADAPTER WITH STANDARD INTER CHANGEABLE
JOINTS. MADE OF PTFE. These bellow adaptor can be used for flexibility up
to 90 degrees and can be bent to eliminate compressing. |
| SIZE : - B19, B24, B34, B55 |
|
|
Item
Code : - GSGI/PTFE/057
PTFE
REDISTRIBUTORS FOR COLUMNS |
| MADE OF PTFE. These
distributors can be used for vapour perfect distribution. |
| SIZE (in Inch) :-
2,3,4,6,9,12". |
|
|
Item
Code : - GSGI/PTFE/058
PTFE
PACKING SUPPORT FOR COLUMNS |
| MADE OF PTFE. These
support for packing can supply outside and inside filled type. |
| CAPACITY : - 250, 500 ml. |
|
|
Item
Code : - GSGI/PTFE/059
PTFE
FUNNEL 60o |
| MADE OF PTFE. (Powered
tunnel can be made as required) |
| DIA (mm) : - 25,50, 75, 100,
150 mm. |
|
|
Item
Code : - GSGI/PTFE/060
PTFE
DESICATORS |
| PTFE
DESICATORS SMALL AND LARGE COVER (KNOB
TOP). MADE OF PTFE. |
| APT. ID OF
FINISH FLANGE |
APTO. OF FINISH
FLANGE |
CHAMBER |
| 110 |
185 |
50 |
| 160 |
255 |
95 |
| 200 |
300 |
105 |
| 250 |
330 |
130 |
|
|
Item
Code : - GSGI/PTFE/061
PTFE
SIGHT GLASS PACKING |
| (PER SET OF FOUR PARTS) MADE OF PTFE. |
| SIZE (in inch) : - 1/2, 1, 1
1/2, 2, 2 1/2, 3, 4, 6 ". |
|
|
Item
Code : - GSGI/PTFE/062
PTFE
VALVE BELLOW |
| PTFE
VALVE BELLOW WITH GFT CAP. MADE OF PTFE. |
| SIZE (in inch) : - 5/8, 1, 1
1/2, 2". |
|
|
Item
Code : - GSGI/PTFE/063
PTFE
VALVE BELLOW CAP ONLY (GFT) |
| MADE OF PTFE. |
| SIZE (in inch) : - 5/8, 1, 1
1/2, 2". |
|
|
Item
Code : - GSGI/PTFE/064
PTFE
EXPANSION BELLOW |
| MADE OF PTFE. |
| SIZE (in inch) : - 5/8, 1, 1
1/2, 2, 3, 4, 6, 9, 12" . |
|
|
Item
Code : - GSGI/PTFE/065
PTFE
VACCUM EXPANSION BELLOW |
| PTFE
VACCUM EXPANSION BELLOW WITH INNER SLEEVE. MADE OF PTFE. |
| SIZE (in inch) : - 5/8, 1, 1
1/2, 2, 3, 4, 6, 9, 12" . |
|
|
Item
Code : - GSGI/PTFE/066
ALLUMINIUM
BELLOW FLANGES |
ALLUMINIUM
BELLOW FLANGES FOR VACCUM AND EXPANSION
BELLOWS. Mode of ALUMINIUM. |
| SIZE (in inch) : - 1, 1 1/2,
2, 3, 4, 6, 9, 12" . |
|
|
Item
Code : - GSGI/PTFE/067
PTFE
GARG TYPE CRESCENT |
| PTFE GARG
TYPE CRESCENT RING OR O RING. MADE OF PTFE. |
| SIZE (in inch) : - 1, 1 1/2,
2, 3, 4, 6, 9, 12" . |
|
|
Item
Code : - GSGI/PTFE/068
PTFE
GARG EXPANSION ENVELOPE GASKET |
| PTFE GARG
EXPANSION ENVELOPE GASKET WITH INSERT 2 mm. MADE OF PTFE. |
| SIZE (in inch) : - 1, 1 1/2,
2, 3, 4, 6, 9, 12" . |
|
|
Item
Code : - GSGI/PTFE/069
PTFE
STIRRING ASSEMBLY BELLOW |
| PTFE
STIRRING ASSEMBLY BELLOW TYPE WITH GFT PLATE. MADE OF PTFE. |
| SIZE : - SMALL-25 MM AND BIG
45 MM . |
|
|
Item
Code : - GSGI/PTFE/070
PTFE
STIRRER BLADE |
| MADE OF PTFE. Blade
half moon shape for Lab. Pure PTFE blades designed for use with any
standard "Button Up" stirring rod key hole is carefully placed
to give center of gravity that assures easy in section and removal design
eliminates. Possibility of flip over after insertion and permits optimum
speeds with minimum vibration available in regular (R) and Micro (M) sizes
contoured to fit a wide range of Round Bottom Flasks standard blades are
3.2mm Thick (3) for normal use. Heavy Duty blades are 4.8mm to 5mm thick
for use at extreme temperatures or for stirring viscous materials (specify
socket size) |
| Length (mm) |
Width (mm) |
Thick (mm) |
BORE |
SOCKET |
FLASK SIZE (ml) |
| 38 |
11 |
3 |
- |
B/14 |
50 |
| 38 |
12 |
3.2 |
- |
- |
50 |
| 45 |
11 |
3 |
6 |
14/23 |
100 |
| 47 |
12 |
3.2 |
- |
- |
100 |
| 47 |
18 |
3.2 |
- |
- |
100 |
| 47 |
18 |
4.8 |
- |
- |
100 |
| 50 |
18 |
3 |
10 |
24/29 |
100 |
| 50 |
24 |
3 |
10 |
29/32 |
100 |
| 65 |
12 |
3.2 |
- |
- |
250 |
| 65 |
18 |
3.2 |
- |
- |
250 |
| 65 |
18 |
4.8 |
- |
- |
250 |
| 75 |
18 |
3 |
10 |
24/32 |
500 |
| 75 |
24 |
3 |
10 |
29/32 |
500 |
| 76 |
18 |
3.2 |
- |
- |
500-1000 |
| 76 |
18 |
4.8 |
- |
- |
500-1000 |
| 90 |
24 |
3 |
10 |
29/32 |
1L |
| 110 |
24 |
3.2 |
- |
- |
2L-3L |
| 110 |
24 |
4.8 |
- |
- |
2L-3L |
| 110 |
24 |
3 |
10 |
29/32 |
2L |
| 125 |
24 |
3 |
10 |
45/40 |
2L |
| 125 |
24 |
3 |
10 |
29/32 |
5L |
| 128 |
25 |
3.2 |
- |
- |
5L |
| 128 |
25 |
4.8 |
- |
- |
5L |
| 145 |
35 |
4 |
10 |
45/40 |
5L |
| 150 |
30 |
5 |
10 |
34/39 |
5L |
| 200 |
50 |
6 |
10 |
55 |
10L |
|
|
Item
Code : - GSGI/PTFE/071
PTFE
SHEETS |
| MADE OF PTFE. |
| SIZE (in mm) : -
0.5,0.8,1,1.5,2,2.5,3,4,5,6,8,9.5,10,12,15,16,19,20,22,25 mm .
AVAILABLE IN 300x300, 450x450, 600x600,
900x900, 1000x1000 mm
|
|
