Clear Glass Tubing

Amber Glass Tubing
Ampoule & Vial



`

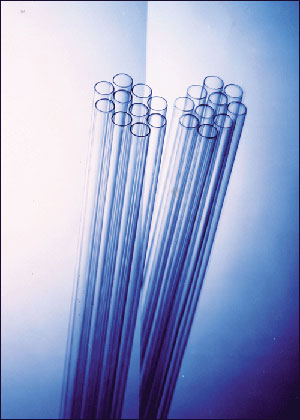

GSGI - Clear Glass Tubing

Physical Data

No

Physical Performance

Data

Unit
1 Coefficient of mean linear thermal expansion(20C;300C) 7.0 +/- 0.1 10-6 K-1
2 Transformation temperature 550 +/- 15 oC
3 Softening point 750 +/-10 oC
4 Working point 1110 +/- 20 oC
5 Density at 20C 2.46 +/- 0.02 g/cm3

Chemical Composition

SiO2 B2O3 Na2O BaO CaO Al2O3
70 6.6 11 <2 <3 6.2

Chemical Data

Water resistance to ISO720 1
Water resistance to European Pharmacopoeia 1
Water resistance to USP23 1
Acid resistance Class(DIN12116) 1
Alkali resistance Class(ISO695) 2





top



Specification of Tubing for Ampoul

Outer Diameter Wall Thickness Length Straightness
Basic Size Tolerance Basic Size Tolerance Basic Size Tolerance Measuring Distance t<=
9.50 +/- 0.20 0.45 +/- 0.03 700-2000 +/- 6.00 1000 2.5%o
10.00 0.50
11.25
11.50
14.25 +/- 0.24 0.52
16.00 +/- 0.24 0.55 +/- 0.04
16.25 +/- 0.26 0.64
18.40 +/- 0.30 0.60
22.00 0.70

Special order can be taken according to requirement.



Specification of Tubing for Vial                                                      Unit:mm

Outer Diameter Wall Thickness Length Straightness
Basic Size Tolerance Basic Size Tolerance Basic Size Tolerance Measuring Distance t<=
16.00 +/- 0.26 0.80 +/- 0.05 1000-2000 +/- 6.00 1000 2.5%o
16.25 +/- 0.28 0.80
18.40 +/- 0.30 0.90 +/- 0.07
22.00 +/- 0.35 0.90
28.00 +/- 0.35 1.00
1.20

Special order can be taken according to requirement.

Standard Length

Glass tubing----------------1500 +/- 20(mm)







GSGI - Amber Glass Tubing

Physical Data

No

Physical Performance

Data

Unit
1 Coefficient of mean linear thermal expansion(20C;300C) 7.8 +/- 0.1 10-6 K-1
2 Transformation temperature 525 +/- 15 oC
3 Softening point 720 +/-10 oC
4 Working point 1080 +/- 20 oC
5 Density at 20C 2.47 +/- 0.02 g/cm3

Chemical Composition

SiO2 B2O3 Na2O BaO CaO Al2O3
70 4.5 11 <1.0 <5.5 4.5

Chemical Data

Water resistance to ISO720 3
Water resistance to European Pharmacopoeia 3
Water resistance to USP23 3
Acid resistance Class(DIN12116) 3
Alkali resistance Class(ISO695) 4



Specification of Tubing for Ampoule                                                 Unit:mm

Outer Diameter Wall Thickness Length Straightness
Basic Size Tolerance Basic Size Tolerance Basic Size Tolerance Measuring Distance t<=
9.50    0.45 +/- 0.03 700-2000 +/- 6.00 1000 2.5%o
10.00 0.50
11.25
11.50
14.25 +/- 0.24 0.52
16.00 +/- 0.24 0.55 +/- 0.04
16.25 +/- 0.26 0.64
18.40 +/- 0.30 0.60
22.00 0.70

Special order can be taken according to requirement.



Specification of Tubing for Vial                                                      Unit:mm

Outer Diameter Wall Thickness Length Straightness
Basic Size Tolerance Basic Size Tolerance Basic Size Tolerance Measuring Distance t<=
16.00 +/- 0.26 0.80 +/- 0.05 1000-2000 +/- 6.00 1000 2.5%o
16.25 +/- 0.28 0.80
18.40 +/- 0.30 0.90 +/- 0.07
22.00 +/- 0.35 0.90
28.00 +/- 0.35 1.00
1.20

Special order can be taken according to requirement.

Standard Length

Glass tubing----------------1500 +/- 20(mm)

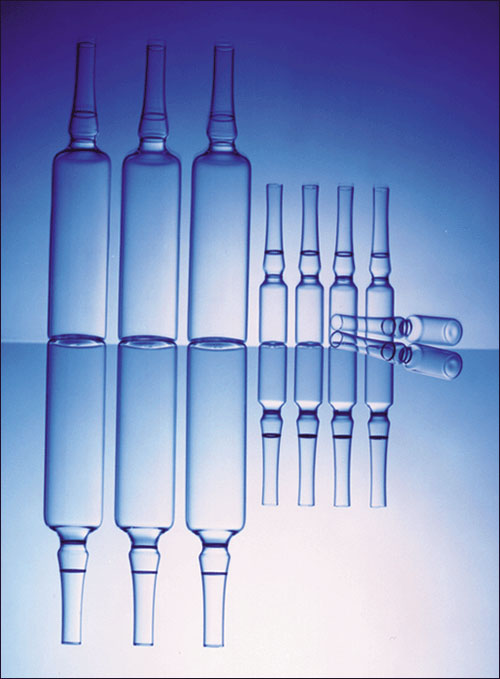

Ampoule & Vial

Ampoule       Specification

Specific ation(ml)

Outer Diameter

 Length Thickness Out of round Lnclined Bottom Volume
Outer diameter of body Outer diameter of body Outer diameter of body Outer diameter of body O.D. of color dot Total height Height from bottom of neck   Body height     Bottom Thickness
Basic size Deviation Limit Basic size Deviation Limit Basic size Deviation Limit Basic size Deviation Limit Basic size Deviation Limit Basic size Deviation Limit   Max Max Max Max Max Max
1 + / - 10.0 + / - 0.26 + / - 6.3 + / - 0.8 + / - 7.8 + / - 1.0 + / - 5.0 + / - 0.6 2.0 + / - 0.5 60.0 + / - 1.0 25.0 + / - 1.0 57 21.0 31.0 0.20 0.20 1.0 1.0 1.5
2 + / - 11.5 + / - 0.26 + / - 7.0 + / - 0.8 + / - 8.5 + / - 1.0 + / - 5.5 + / - 0.6 70.0 + / - 1.0 36.0 + / - 1.0 67 32.0 43.0 2.9
5 + / - 16.0 + / - 0.30 + / - 8.2 + / - 1.0 + / - 10.0 + / - 1.0 + / - 6.0 + / - 0.6 87.0 + / - 1.0 43.0 + / - 1.0 84 38.5 50.5 0.30 1.7 1.3 6.8
10 + / - 18.4 + / - 0.35 + / - 8.2 + / - 1.2 + / - 11.0 + / - 1.0 + / - 6.8 + / - 0.8 102.0 + / - 1.0 58.5 + / - 1.2 99 53.5 66.5 0.25 12.3
20 + / - 22.0 + / - 0.35 + / - 10.5 + / - 1.2 + / - 13.0 + / - 1.2 + / - 7.3 + / - 1.0 126.0 + / - 1.3 76.5 + / - 1.5 123 68 85.0 0.30 0.35 2.4 23.5

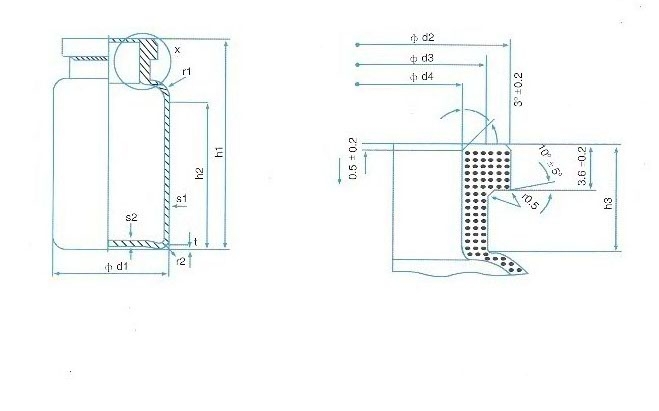

Vial        Specification





Spec. Max. Vol. Ml a d1 d2 d3 d4 h1 h2 h3 r1 r2 s1 s2 t Quality
2R 4 +/-0.5 1 16 +/-0.2 13 10.5 7 35 +/-0.5 23 8 +/-0.52 2.5 1.5 1 +/- 0.04 0.7 0.7 5
4R 6 45 23 6.1
6R 10 1.2 22 20 16 12.6 40 27 8.5 3.5 2 8.3
8R 11.5 45 32 9.4
10R 13.5 +/- 1 24 16.5 45 31 9 10.2
15R 19 60 46 12.8
20R 25 +/-1.5 1.5 30 +/-0.3 17.5 55 +/-0.7 35 10 +/-0.75 5.5 2.5   +/- 0.05 1 17.4
25R 30.3 65 45 20
30R 36 75 55 22.7
