Manufacture of glass pumps is comparatively recent development. The pumps involve moving parts. Hence, more precision is required in the manufacture to minimize operational and maintenance problems. Out of development activities and experience of several years, we have developed the following types of pumps.

Centrifugal Pumps

Positive Displacement type Metering Pumps

Ejectors

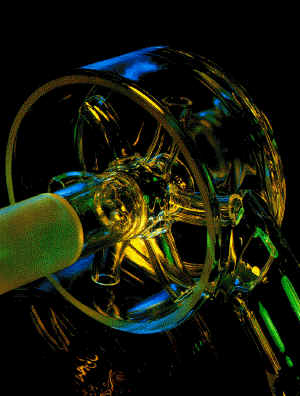

Centrifugal Pumps

They are available with glass body, glass impeller and PTFE backing plates with mechanical seal. The matting faces of the mechanical seal are generally glass filled Teflon and Ceramic. These pumps can be used for most of the compatible corrosives liquids up to 80 o C and working pressures of 2.0 kg/cm2. These pumps are available with flame proof or none flame proof motors.

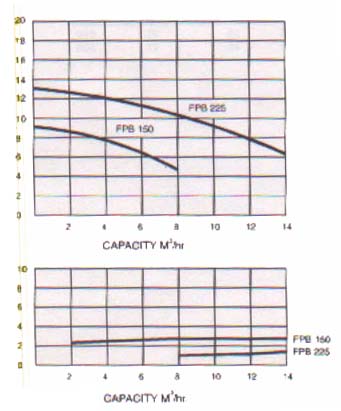

CAT. REF. IMPELLERS MM DN1 DN2 SPEED RPM MOTOR H.P.

GFPB 150 150 40 40 1440 2.0
GGPB 150 150 40 40 1440 2.0
GFPB 225 225 50 50 1440 3.0
GGPB 225 225 50 50 1440 3.0

F = FLAME PROOF MOTOR

G = NON FLAME PROOF MOTOR

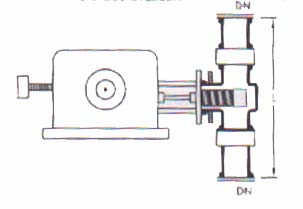

METERING PUMPS

The metering pumps are available in glass body and PTFE working parts. The accuracy of flow rate is 2% of the full range. Simplex and Duplex versions are also available.

CAT. REF. CAPACITY LPH MAX. HEAD M MOTOR H.P.

GFPM 20 20 3.0 0.25
GFPM 50 50 3.0 0.50
GFPM 100 100 3.0 0.50

EJECTORS

Another important area in fluid pumping is ejectors. We have developed single jet and multi - jet ejectors. They can be used for vaccum generation or as venture scrubbers. The advantage of these ejectors is there are no moving parts and hence no maintenance.

CAT. REF DN DN1 DN2 Water Flow M3/hr. HEAD ULTIMATE VACCUM

GEJ 1 50 50 65 25 25 650
GEJ 7 50 50 65 25 25 500
