INTRODUCTION

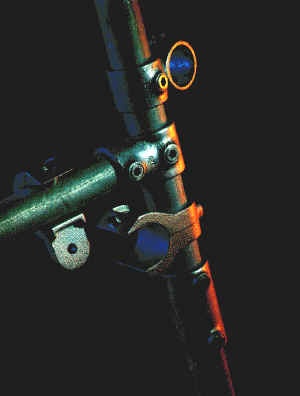

The glass components are supported on tubular structures. They are made of G.I. or powder coated still pipes. Typical fitting are used to make a strong and rigid structure to support the glass assemblies. These fitting are made of cast iron and held in position by tightening all screws.

The general dimensions of the structures and fittings are as follows : -

NB PIPE O.D D1 D2 d   S

25 33.3 35 45 1/2" 18
32 42.0 45 55 1/2" 23
40 47.9 51 61 1/2" 33
50 59.7 63 73 1/2" 33

TOP









BASE

CAT. REF. NB F\F \D H PCD

GBS 25 25 150 75 110 4 x 14o
GBS 32 32 150 75 110 4 x 14o
GBS 40 40 150 75 110 4 x 14o
GBS 50 50 175 75 125 4 x 14o

TOP



COUPLER (OUTER AND INNER)

CAT. REF. NB NB HH1

GCL 25 25 150 200
GCL 32 32 150 200
GCL 40 40 150 200
GCL 50 50 150 200

TOP







ELBOW

CAT. REF. NB NB HL

GBN 25 25 50 55
GBN 32 32 65 70
GBN 40 40 70 80
GBN 50 50 85 95

TOP



DOUBLE ELBOW

CAT. REF. NB NB HL

GDBN 25 25 50 55
GDBN 32 32 65 70
GDBN 40 40 70 80
GDBN 50 50 85 95

TOP



TEE

CAT. REF. NB H L

GT 25 25 50 55
GT 32 32 65 70
GT 40 40 70 80
GT 50 50 85 95

TOP



DOUBLE TEE

CAT. REF. NB H L

GT 25 25 50 55
GT 32 32 65 70
GT 40 40 70 80
GT 50 50 85 95

TOP



CROSS

CAT. REF. NB H L

GX 25 25 50 45
GX 32 32 65 55
GX 40 40 65 70
GX 50 50 65 85

TOP



EQUAL BRACKET

CAT. REF. NB H L L1

GEBT 25 25 50 65 50
GEBT 32 32 52 75 60
GEBT 40 40 62 85 60
GEBT 50 50 72 95 60

TOP



UNEQUAL BRACKET

CAT. REF. NB NB1 H L L1

GUBT 25/15 25 15 35 65 50
GUBT 32/15 32 15 40 75 60
GUBT 40/25 40 25 50 85 60
GUBT 50/25 50 25 55 95 60

TOP



SUPPORT

CAT. REF. NB H L d

GSPT 25 25 55 50 13
GSPT 32 32 55 57 13
GSPT 40 40 55 62 13
GSPT 50 50 55 67 13

TOP









PLUG

CAT. REF. NB

GPLUG 25 25
GPLUG 32 32
GPLUG 40 40
GPLUG 50 50



TOP
